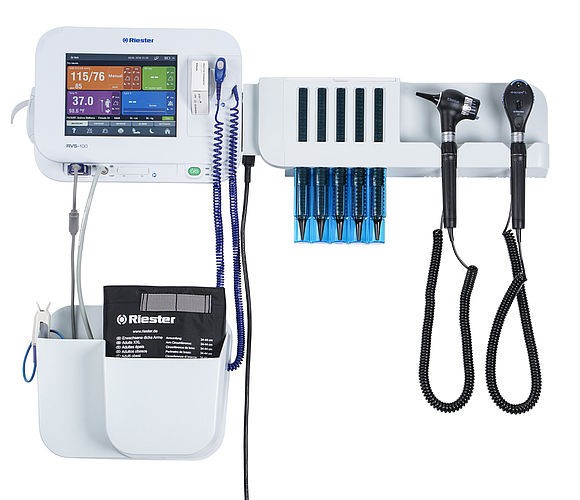

Diagnostic handles

• ri-scope® L instruments with renowned optics and advanced LED lighting
• Maintenance-free LED technology (4,200 K, CRI >90)

Monitor

• 3 measurement modes (Monitor, Spot-check, Triage)
• High-sensitivity 8” TFT colour touch screen with self-explanatory user interface and integrated help-function
• Displays SYS, DIA, MAP, Pulse, Temp, Plethysmogram
• Clinical grade NIBP* including averaging mode
• Programmable NIBP averaging mode (2-5 readings)
• Riester, Masimo* or Nellcor* Oximax SpO2
• Predictive Thermometer (Filac 3000)
• Connectivity with the EMR - follows the HL7 standard
• LAN Connectivity as standard
• Programmable alarms (audible, visible) with 3 priority levels
• Supports nurse call RJ11 port
• Internal memory for 5,000 measurements

 (*includes neonate mode)

Options

• Thermal printer (internal)
• Barcode reader
• Extension modul (extension of the entire system up to 3 handles)
• WiFi

Accessories supplied with monitor

• NIBP extension tube
• 2 cuffs (adult & adult large incl. connectors)
• SpO2 sensor adult
• SpO2 extension cable
• Oral temperature probe
• Probe cover

Technical Data

Power Supply: 100 – 240 V AC, 50/60 Hz

Dimensions: L x H x W: 759 x 310 x 110 mm (29.88 x 12.21 x 4.33 in)

Weight: 7.60 kg (16.76 lb) including temp module, printer

Dimensions Basket: L x H x W: 270 x 225 x 200 mm (10.63 x 8.86 x 7.88 in)

Specifications of the monitor please see RVS-100.
