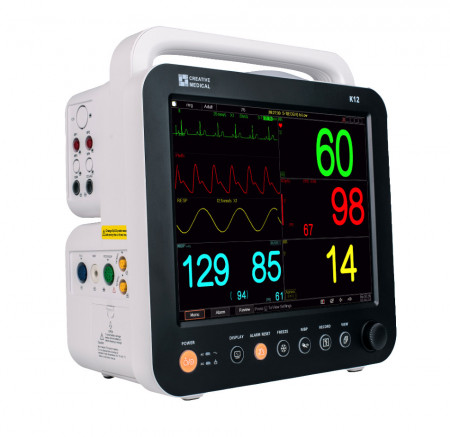

Creative medical K-12, Pacijent monitor, SpO2 | NIBP | TEMP | ECG | PR | RESP

Prix disponibles sur demande

Commandes téléphoniques - 011/405-6762 011/405-8757 Mobilni 069/3592-892 i 064/2685-382011/405-6762 011/405-8757 Mobilni 069/3592-892 i 064/2685-382, 8h-16h

Code du produit - SKU: NMN44BLL

Description

Input dynamic range	±(0.5mVp~5mVp)
Differential input impedance	≥10MΩ
Bandwidth	0.05~150Hz (Diagnostic)
	0.5~40Hz (Monitoring)
	1~20Hz (Operation)
CMRR	≥90dB (Diagnostic)
CMRR	≥105dB (Monitoring & Operation)
Sensitivity selection	×1/4, ×1/2, ×1, ×2, ×4 and Auto
Sweeping speed	6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
HR measuring range	15~350bpm
HR accuracy	±1% or ±2bpm, whichever is greater
Pacemaker pulse detection and rejection function
RESP	Measuring range	0~120rpm
RESP	Measuring accuracy	±5% or ±2 rpm, whichever is greater
NIBP	Technique	Oscillometric method
	Typical measurement time	<30 seconds (adult cuff)
	NIBP measuring range	SYS: 40~275mmHg (Adult)
		40~200mmHg (Pediatric)
		40~135mmHg (Neonate)
	NIBP measuring range	DIA: 10~210mmHg (Adult)
		10~150mmHg (Pediatric)
		10~95mmHg (Neonate)
	NIBP measuring range	MAP: 20~230mmHg (Adult)
		20~165mmHg (Pediatric)
		20~110mmHg (Neonate)
	NIBP measuring accuracy	Mean difference: ±5mmHg
	NIBP measuring accuracy	Standard deviation: 8mmHg
	NIBP measurement mode	Manual, Auto, STAT, Multi-cycle mode
	Auto measuring intervals	1-480min
SpO2	Technique	Dual-wavelength optical method
	Measuring range	0%~100%
	Measuring accuracy	Arms is not greater than 2% for SpO2 range 70~100%.
	PR measuring range	30~250bpm
	PR measuring accuracy	±2bpm or ±2%, whichever is greater
	Low perfusion performance	As low as 0.3%.
Cerebral State Monitoring (CSM)	EEG sensitivity	±400µV
	Noise level	<2µVp-p, <0.4µV rms (1~250Hz)
	CMRR	>140dB
	Input impedance	>50Mohm
	CSI and update	0-100. filter: 6-42Hz, 1 sec. update
	EMG%	0-100 (logarithmic), filter: 75-85 Hz, 1 sec. update
	BS%	0-100. filter: 2-42 Hz, 1 sec. update
IBP	Technique	Strain gauge transducer
	Input sensitivity	5µV/V/mmHg
	Measuring range	-50~300mmHg
	Measuring accuracy	±2% or ±4mmHg, whichever is greater
	Measuring positions	ART, RAP, PA, LAP, CVP
	Measuring positions	ICP, AUXP1, AUXP2
	Calibration	zero calibrating
Cardiac Output (C.O.)	Blood temperature	23-43℃, accuracy: ±0.5℃
	measuring: range	23-43℃, accuracy: ±0.5℃
	Injecta temperature	0-20℃, accuracy: ±0.5℃
	measuring: range	0-20℃, accuracy: ±0.5℃
	Measuring range	0.2~20 L/min
	Measuring accuracy	±0.2 L/min or ±10%, whichever is greater
Other Specifications	Power supply	AC 100V-240V, 50/60Hz, 60VA
	Built-in lithium battery	11.1V/4400mAh
	Display	12.1 inch TFT display
	Alarming method	3 levels audible-visible alarm
	Networking	Ethernet
Standard configuration	ECG, Respiration, SpO2, PR, NIBP, Temperature
Option	2-IBP, EtCO2, Nellcor SpO2, SunTech NIBP, 12-lead ECG Cardiac Output, Cerebral State Monitoring, CMS, Touch Screen
