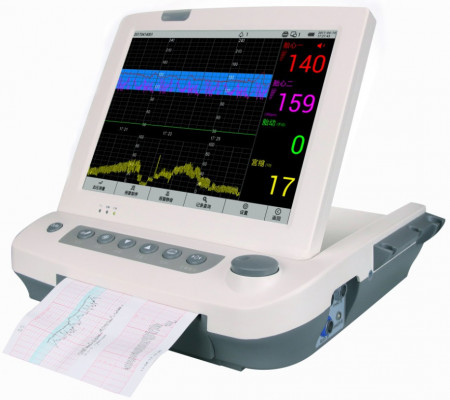

AFM-800P Fetal/Maternal Monitor

Direktna Podrska
Stock limité
Demander un devis de prix
Code du produit - SKU NNY23
frais de port ne sont pas inclus

Description

AFM-800P

Fetal/Maternal Monitor

Technical Specifications
Fetal Heart Rate (FHR)
Parameters
FHR1, FHR2 (optional)
Measurement range
50 - 240 bpm
Accuracy
±2 bpm
Sweep speed
X1, X2, X4, X8
  Transducer
 9 crystals, pulsed Doppler, high sensitivity
Frequency
1.0MHz
Probe
wired
 Uterine Activity (TOCO)
Measurement range
0 - 100
TOCO baseline
0, 5, 10, 15, 20 (selectable)
 Maternal ECG/HR (MECG) (optional)
Lead type
5-lead
Lead selection
RA, LA, RL, LL, V
HR measurement range
15 bpm - 300 bpm
Accuracy
 ±1 bpm or ±1 %, whichever is greater
 Respiration Rate (optional)
RESP Rate range
7 rpm - 120 rpm
Accuracy
±2 rpm/min or ±2 % reading, whichever is greater
 Maternal Non-invasive Blood Pressure (NIBP) (optional)
Method
Automatic Oscillometric
Parameters
SYS/DIA/MAP
Operating modes
Manual/Auto
Auto measure intervals
3/5/10/20/30/60/90/120/240 minutes
Units
mmHg/kPa
Cuff pressure range
0 mmHg - 300 mmHg (0 kPa - 40.0 kPa)
Measurement and alarm range
SYS: 50 mmHg - 240 mmHg (6.7 kPa - 32.0 kPa)
MAP: 25 mmHg - 200 mmHg (3.4 kPa - 26.6 kPa)
DIA: 15 mmHg - 180 mmHg (2.0 kPa - 24.0 kPa)
Accuracy
 Max. Mean Error: ±3 mmHg (±0.4 kPa) or ±2 of reading
Over-pressure protection
Yes
 Maternal SpO2 (optional)
Measurement range
70 - 99 %
Accuracy
±3 %
PR range
30 - 240 bpm
Accuracy
±2 bpm/min or ±5 % reading, whichever is greater
 Temperature (optional)
TEMP range
0 – 50c℃
Resolution
±0.1℃
 Weight & Dimensions
Net Weight
3.5kg
Dimensions
350(L) * 320(W) * 85(H) mm
 Standard Accessories
 3 in 1 transducer (FHR.TOCO, FM) .
2 pcs of printer paper.
One power cable
Two bandages /three bandage (twin optional)
Second one transducer(optional)
 Remark
3 Para (fetal monitor)
FHR, TOCO, FM
6 Para (fetal/maternal monitor)
FHR, TOCO, FM, MHR, SPO2, NIBP
9 Para (fetal/maternal monitor)
FHR, TOCO, FM, MHR, SPO2, NIBP, ECG, RR, TEMP
 Options
FHR2, Maternal NIBP, SpO2, PR, ECG, HR, RESP, TEMP, Fetus Waker, Trolley, Wall Mount
